25000 ANSI Lumens 3D Mapping Projector WUXGA Resolution Lens Shift Keystone Correction

Brightness : 25000 Lumens

Technology : 3LCD Dual-Color Laser

Resolution : WUXGA

Application : Architectural Mapping, Immersive Experience

Brand Name : SMX

Model Number : MX-X25000U

MOQ : 1pc

Packaging Details : Carton/Flight Case

Lenses : Rechangeable Motorized Lenses

Contrast : 5,000,000:1

Supply Ability : 15000pcs/monthly

Keystone Correction : Yes

Payment Terms : T/T

Control : Remote

Delivery Time : 7-15days

Lens Shift : Yes

Place of Origin : China

Light Source : Dual-Color Laser Light Source

Certification : ISO，CE， RoHS

Display Technology : 3LCD

Lifespan : 20000+ Hours

Contact Now

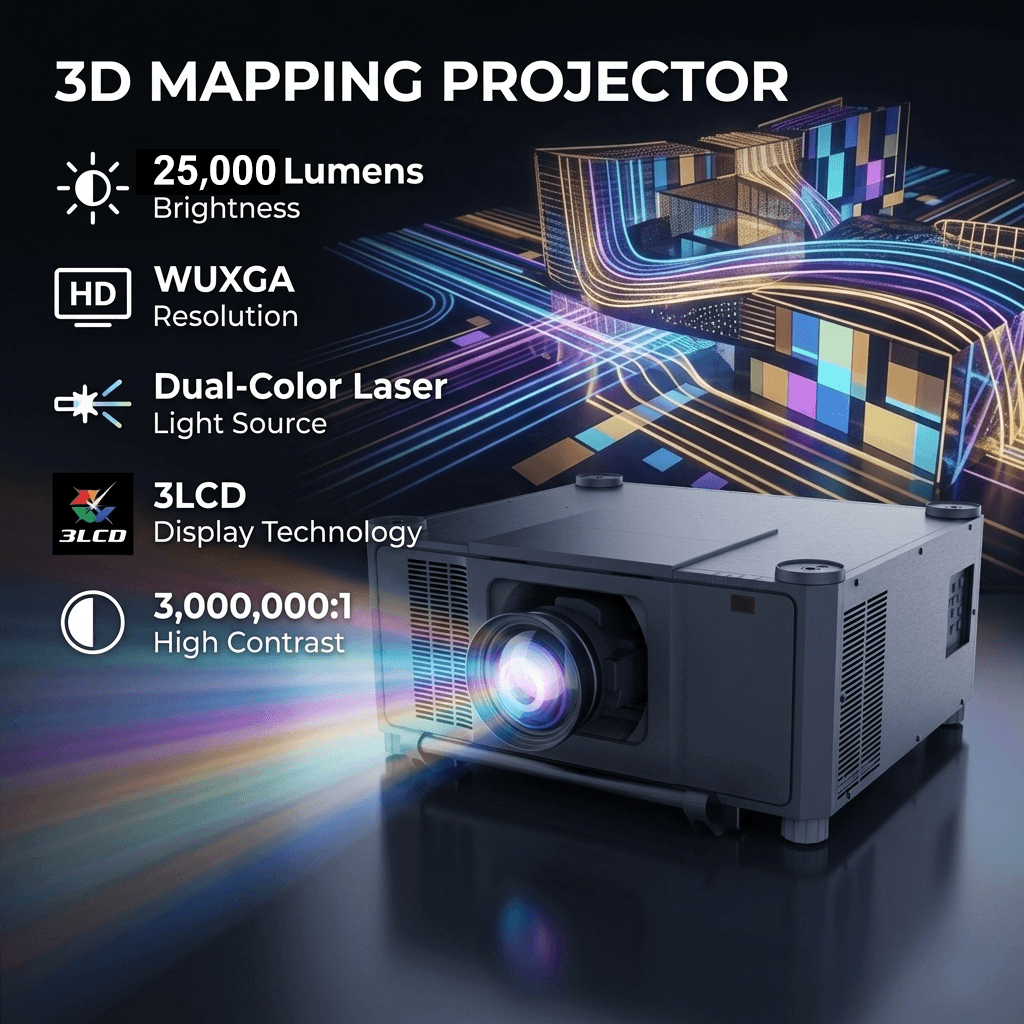

SMX MX-X25000U | 25,000 ANSI Lumens WUXGA Professional Large Venue Laser Projector

Premium 3LCD Dual-Color Laser Solution for Architectural Projection Mapping & Immersive Experiences

Brightness: 25,000 ANSI Lumens

Technology: 3LCD + Dual-Color Laser

Resolution: Native WUXGA (1920x1200)

Lifespan: 20,000+ Hours (Maintenance-Free)

Lens System: Motorized Interchangeable

Warping: Built-in Edge Blending & Geometry

25000 ANSI Lumens 3D Mapping Projector WUXGA Resolution Lens Shift Keystone Correction

Next-Generation Dual-Color Laser & 3LCD True Color Performance

Designed for the most demanding professional AV applications, the SMX MX-X25000U combines a next-generation Dual-Color Laser engine with advanced 3LCD imaging technology. Unlike conventional single-blue-laser systems, this dual-laser setup dramatically expands the color gamut and enhances red color reproduction, ensuring true-to-life visual stability for continuous 24/7 heavy-duty operations.

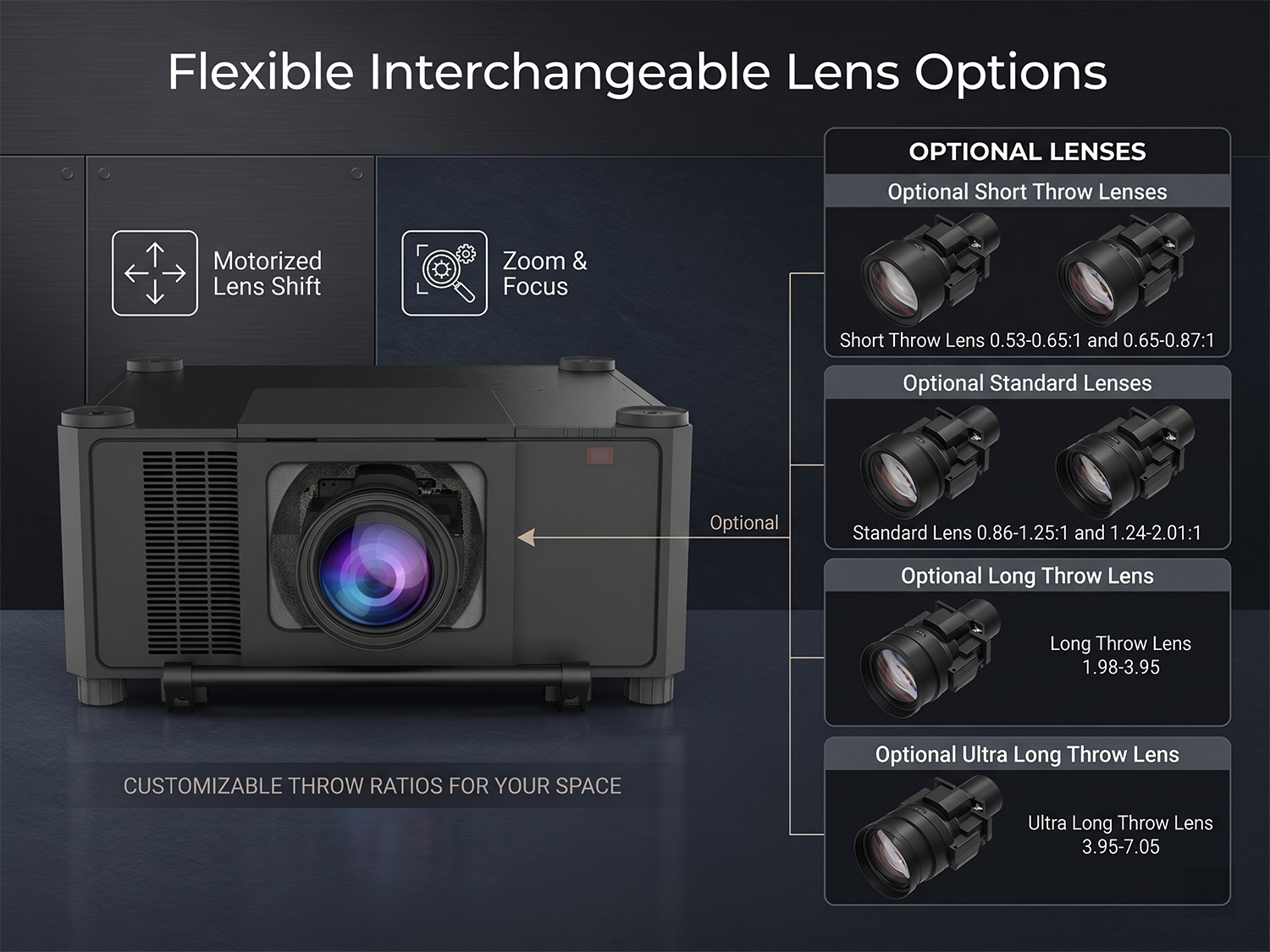

Professional Motorized Interchangeable Lens System

Every large venue installation presents unique throw distance challenges. To ensure ultimate flexibility, the MX-X25000U supports five optional powered lenses with full remote focus, zoom, and extensive lens shift.

Lens Type	Throw Ratio	Recommended Pro-AV Applications
Ultra Short Throw	0.35:1	Immersive Rooms, Digital Art Museums, Spatial Galleries
Short Throw	0.65:1	Flight Simulation, Commercial Exhibitions, Golf Simulators
Standard Lens	1.24–2.0:1	Corporate Auditoriums, Higher Education Lecture Halls
Long Throw Lens	2.0–4.0:1	Theaters, Houses of Worship, Large Convention Centers
Ultra Long Throw	4.0–7.2:1	Architectural Projection Mapping, Stadiums, Outdoor Festivals

25000 ANSI Lumens 3D Mapping Projector WUXGA Resolution Lens Shift Keystone Correction

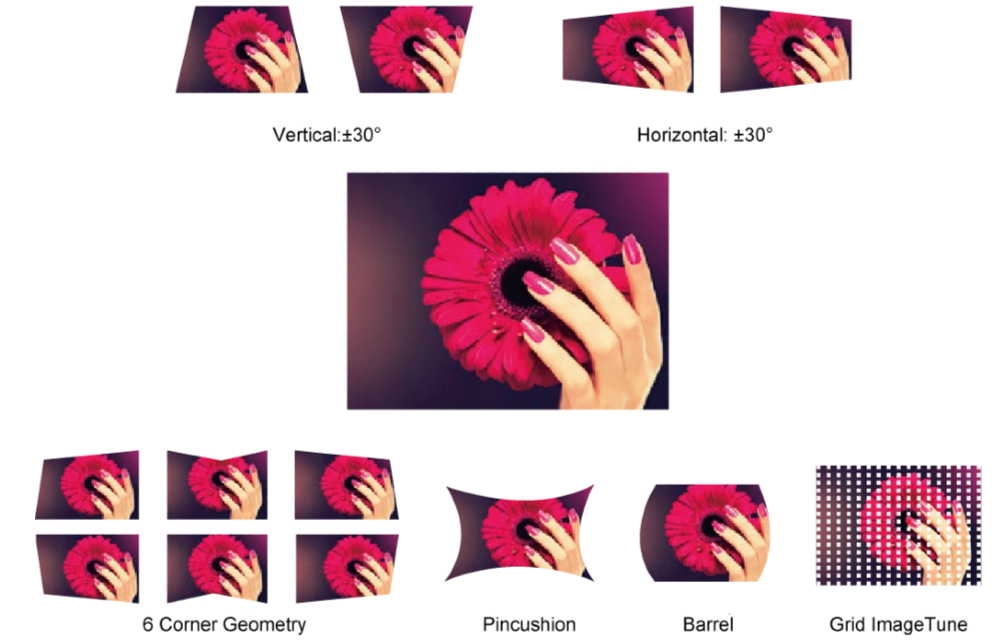

Built-in Hardware Edge Blending & Geometric Correction

Eliminate the cost of expensive external video processors. The SMX 25,000-lumen projector features integrated, broadcast-grade image warping and hardware blending software. This enables multi-projector seamless panoramic stitching and precise pixel alignment on irregular surfaces, including:

Corner Correction: Independent 4-corner adjustment for quick grid alignment on angled screens.
Curved & Cylindrical Warping: Advanced geometric algorithms for smooth mapping on pillars and curved walls.
Dome Projection Ready: Fully compatible with planetarium and scientific visualization dome environments.

25000 ANSI Lumens 3D Mapping Projector WUXGA Resolution Lens Shift Keystone Correction

Target Venues & Industry Applications
